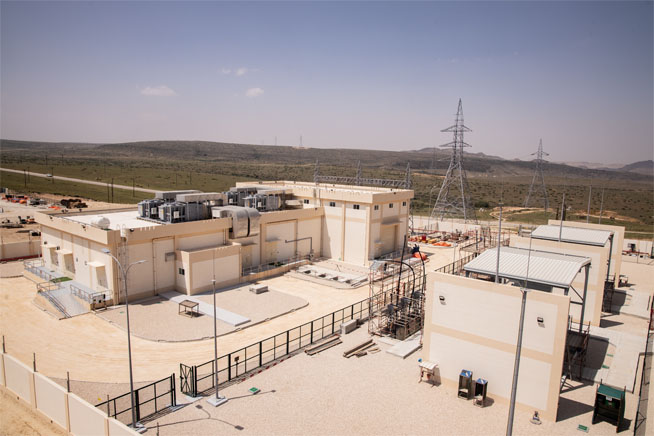

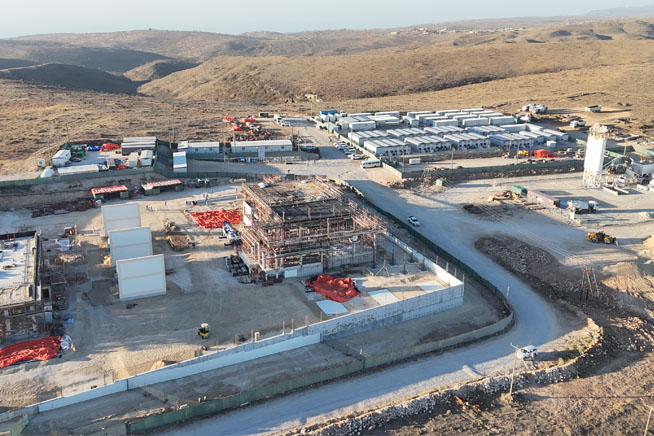

Construction Of 132/33kV Shaba Asaib GS along with associated 132kV OHL from Mudhai GS to Shaba Asaib GS (OETC 55-2023)

18 Months + 6 weeks from 13th Feb 2024

EP189

Construction of 132/33kV Shaba Asaib GS along with associated 132kV D/C vertical configuration towers with Twin AAAC “yew” conductor Overhead transmission line from Shaba Asaib GS to Mudhai GS for route length of 80kms. Modifications to existing 33 kV OHL for facilitating crossover of the 132 kV OHL. All Tower to be Painted (C5) & towers inside MOD & CAA shall have Gray, Red & White paint. Modifications to existing LV/MV overhead lines. Site testing and commissioning works as specified in the OETC standard. Supply of spares and tools.

Grid station Major Equipment

• 132 KV Gas Insulated Switchgear – 6 Bays.
• 33 KV Single Bus bar switchgear (Bus A & B) – 14 Bays
• 63 MVA 132/33kV Power Transformers – 2 Sets
• 500KVA, 33/0.415KV Earthing/ Auxiliary transformers – 2 Nos
• 33KV, 10MVAR Outdoor type Capacitor Banks – 2 Sets
