LOAD BREAK SWITCH (LBS)

INAEL ELECTRIC SYSTEM S.A (Spain)

PRESENTATION

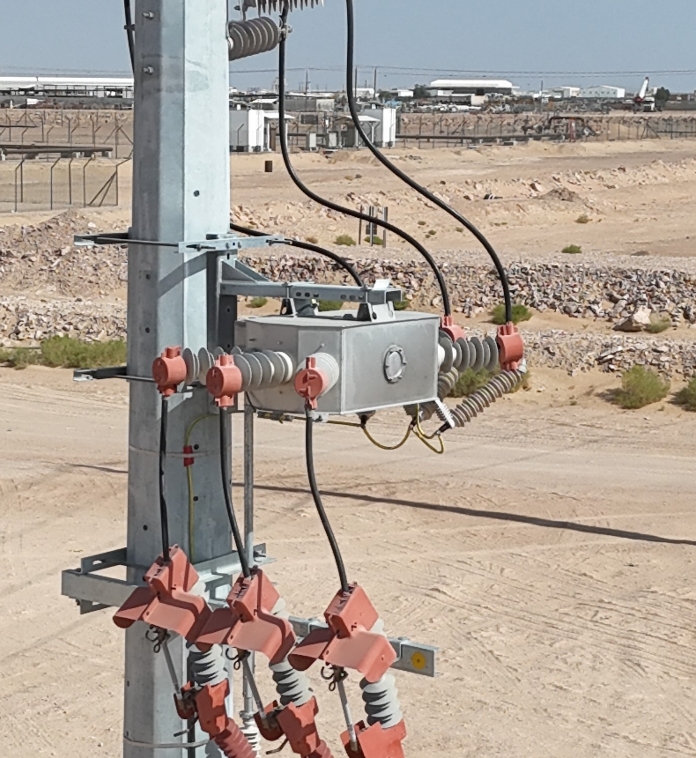

INEXT is a load break switch, breaking and insolated in SF6 gas, designed for outdoor installation on any overhead line pole of medium voltage electrical distribution.

REFERENCE STANDARDS

The INEXT is manufactured in compliance with the following international standards:

• IEC / UNE-EN 62271-100 / 102 / 103 / 200,
• IEC / UNE-EN 60044 – 1 / 2
• The equipment manufacturing process is assured based on a quality management system ISO 9001 Certificate, and environmentally friendly ISO 14001 Certificate.

APPLICATION

INEXT is a load break switch solution for being use on:

• Interruption and isolation of the overhead line.
• Heading of an aerial line.
• Transitions from an aerial line to isolated cable.

It constitutes a sectionalized switch solution for use in:

• Load Break line switching and disconnecting.
• Load Break line tapping.
• Transitions from Load Break line to insulated cable.

INEXT is an electrical network equipment which have the following features:

• Rate current switching
• Making over short-circuit
• Effective breaking

The use of INEXT load break switch in overhead lines of medium voltage electrical distribution provide following advantages:

• Efficiency Power Supply
• Safety and Facility Operation
• Reduce Maintenance Cost
• Long Service Life
